In the field of mechanical transmission, deep groove ball bearings are the most widely used and versatile standard rolling bearings. Featuring simple structure, low friction coefficient, high speed limit and strong adaptability, they are applied in most civil, industrial and general machinery scenarios. Today, we will introduce the classic universal model – 6205 deep groove ball bearing, covering its standard parameters, structural characteristics, performance advantages and core applications, providing accurate references for equipment selection, parts replacement and mechanical design.
1. Performance Advantages of 6205 Deep Groove Ball Bearing
The 6205 bearing complies with national and international general standards with standardized dimensions and performance parameters. It supports cross-brand replacement and serves as a commonly stocked universal accessory in the machinery industry. Its core parameters are as follows:
- Bore Diameter: 25mm
- Outer Diameter: 52mm
- Width: 15mm
- Basic Dynamic Load Rating: Approximately 19.5kN
- Basic Static Load Rating: Approximately 11.3kN
- Limiting Speed (Grease Lubrication): 14000r/min
- Limiting Speed (Oil Lubrication): 18000r/min
- Common Accuracy Grades: P0 (Standard), P6, P5 (Precision)
- Standard Material: High-carbon chromium bearing steel (GCr15) with excellent wear resistance, rust resistance, high hardness and stable service life

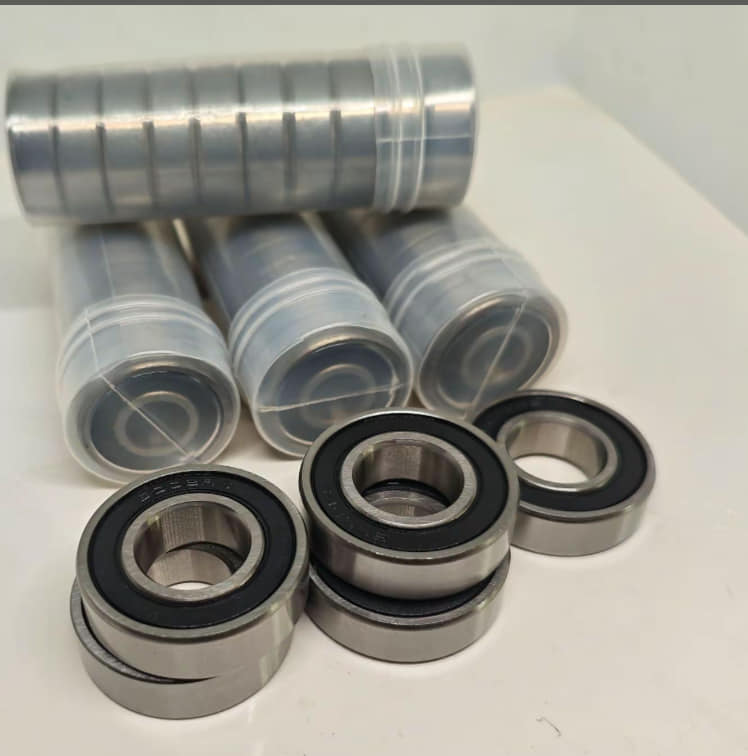

This model has three mainstream structural versions for different working conditions: 6205-ZZ (double metal shield for dust prevention), 6205-2RS (double rubber seal for waterproofing) and open type (no seal), which can be selected according to dusty, humid and other complex environments.
2. Structural and Performance Characteristics
The 6205 deep groove ball bearing adopts a classic deep groove arc raceway structure. The steel balls fit closely with the raceway for uniform stress, retaining the core advantages of deep groove ball bearings and adapting to most conventional mechanical working conditions:
- Strong Load Adaptability: It mainly bears radial loads and can withstand certain bidirectional axial loads, adapting to composite stress conditions. It simplifies equipment structure without requiring combined bearing sets.
- Excellent Operating Performance: Low rolling friction resistance ensures stable operation, low noise and slight vibration. It maintains high stability under high-speed transmission conditions.
- Easy Installation & Maintenance: Compact structure and standardized dimensions deliver high universality, convenient assembly and disassembly, as well as low later maintenance and replacement costs.
- Superior Durability: Made of quenched bearing steel, it features high hardness, strong wear resistance, stable fatigue resistance and impact resistance, ensuring long service life under conventional working conditions.
- Wide Environmental Adaptability: Sealed versions effectively block dust, moisture and impurities, suitable for indoor and outdoor scenarios with slight humidity and heavy dust.
3. Main Applications of 6205 Deep Groove Ball Bearing
With balanced performance, high cost performance and standardized dimensions, the 6205 bearing is a universal multipurpose bearing widely used in general machinery, industrial equipment, civil electrical appliances and transportation equipment. Its core application scenarios are listed below:
3.1 Electromechanical Power Equipment
It is applied to the core transmission parts of small and medium-sized motors, reducers, water pumps and blowers. As a standard accessory for motor end covers and rotating shafts, it ensures high-speed and stable motor operation while reducing operating noise and energy consumption.
3.2 General Mechanical Equipment
It serves as the rotating and transmission support part for conveyors, packaging machinery, printing machinery, textile machinery, woodworking machinery and small machine tools, adapting to medium-high speed and light-to-medium load working conditions.
3.3 Civil & Household Electrical Appliances
Widely used in the rotating shaft parts of large fans, air compressors, washing machines, dryers, wall breakers and commercial small household appliances. It delivers silent operation and high stability to meet the long-term high-frequency use demands of civil equipment.
3.4 Transportation & Supporting Equipment
Applied to the auxiliary transmission structures of electric motorcycle and electric vehicle front and rear wheels, agricultural machinery and small construction machinery. It adapts to outdoor working conditions with excellent vibration resistance and wear resistance for complex stress environments of mobile equipment.
3.5 Precision Auxiliary Transmission
P5/P6 precision-grade 6205 bearings are suitable for small precision instruments, automated accessories and light-duty precision transmission equipment, meeting the requirements of low vibration and high-precision operation.
4. Selection & Usage Notes
- Working Condition Selection: Open type is suitable for clean and dry indoor environments; ZZ metal shield type is preferred for dusty scenarios; 2RS rubber sealed type is the best choice for humid, watery and oily environments to enhance protection performance.
- Load Adaptation: This model is designed for light and medium loads. It is not recommended for heavy-load and high-strength impact conditions, where roller bearings are preferred for higher load capacity.
- Speed Adaptation: Precision-grade bearings with high-quality grease lubrication are recommended for high-speed operating equipment to avoid overheating, abnormal noise and premature wear.
- Replacement Standard: 6205 bearings of all brands are fully interchangeable with unified dimensions. Selection focus should be placed on sealing type and accuracy grade.
Summary(6205 Deep Groove Ball Bearing)
As a classic universal model in the machinery industry, the 6205 deep groove ball bearing is a core basic accessory for general machinery, electromechanical equipment and civil products, featuring standard dimensions, balanced performance, stable operation, high cost performance and wide adaptability. It is the preferred universal model for equipment design selection, fault parts replacement and daily equipment maintenance, applicable to most conventional transmission working conditions.
We will continuously update the parameters, applications and selection knowledge of various common bearing models to help you complete accurate selection and efficient maintenance and avoid errors in accessory selection!
