F10-20M thrust bearing is a single direction thrust ball bearing with grooved raceway. It is a separable bearing consisting of a housing washer, a shaft washer and a cage with steel balls assembly. The 2 washers are made of 52100 chrome steel, and the cage is made of brass or stainless steel.

Shaft washer is ID piloted, and its inner bore diameter is 10 mm which is 0.2 mm larger than that of the housing washer. The outer diameter of housing washer is 0.2 mm larger than that of the shaft washer, and it is OD piloted. The height of this bearing is 6.5 mm, and its weight is 8.5 mm approximately.

F10-20M thrust bearing can endure a dynamic thrust load of 4,707 N, and a static thrust load of 6,243 N. Its max working speed can reach up to 2,300 rpm. Its operating temperature range is -30℃ to 110℃.

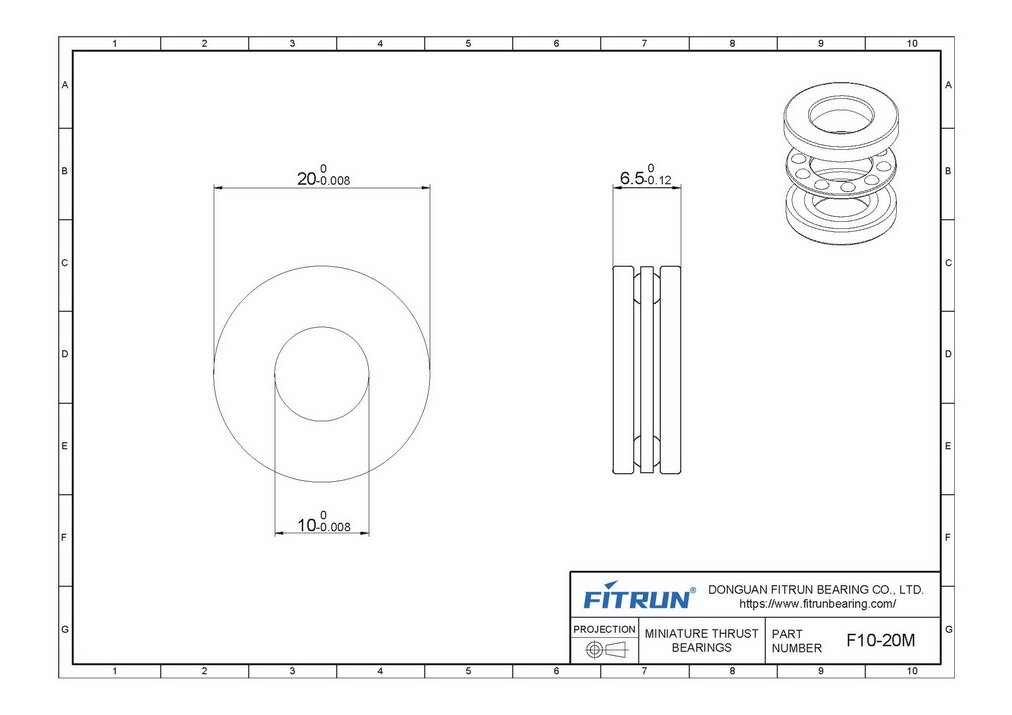

F10-20M thrust bearing has a dimension of 10x20x6.5 mm. We can customize the bearing to fit your applications according to your drawing. Please contact us to get a free quotation for your custom bearings today.
