Home / Products / Stainless Steel Ball Bearing / Stainless Steel Thrust Ball Bearings / SF3-8

SF3-8

Part Number SF3-8
System of Measurement Metric
Bearing Type Ball
Washers Type Flat Raceway
For Load Direction Axial
Seal Type Open
Bore Dia 3 mm
Bore Dia Tolerance -0.008 to 0 mm
Outer Dia 8 mm
Outer Dia Tolerance -0.008 to 0 mm
Height 3.5 mm
Height Tolerance -0.12 to 0 mm
Washer Material 440C Stainless Steel
Ball Material 440C Stainless Steel
Cage Material Brass / Stainless Steel
Dynamic Axial Load 540 N
Static Axial Load 432 N
Max Speed (X1000 rpm) 9.9
ABEC Rating ABEC-1 (higher grade available)
Lubrication Grease, Oil, or Dry
Temperature Range -30 ℃ to 110 ℃
RoHS Compliant
REACH Compliant
Ball Dia 1.588 mm
Ball Qty 6
Weight 0.9 g

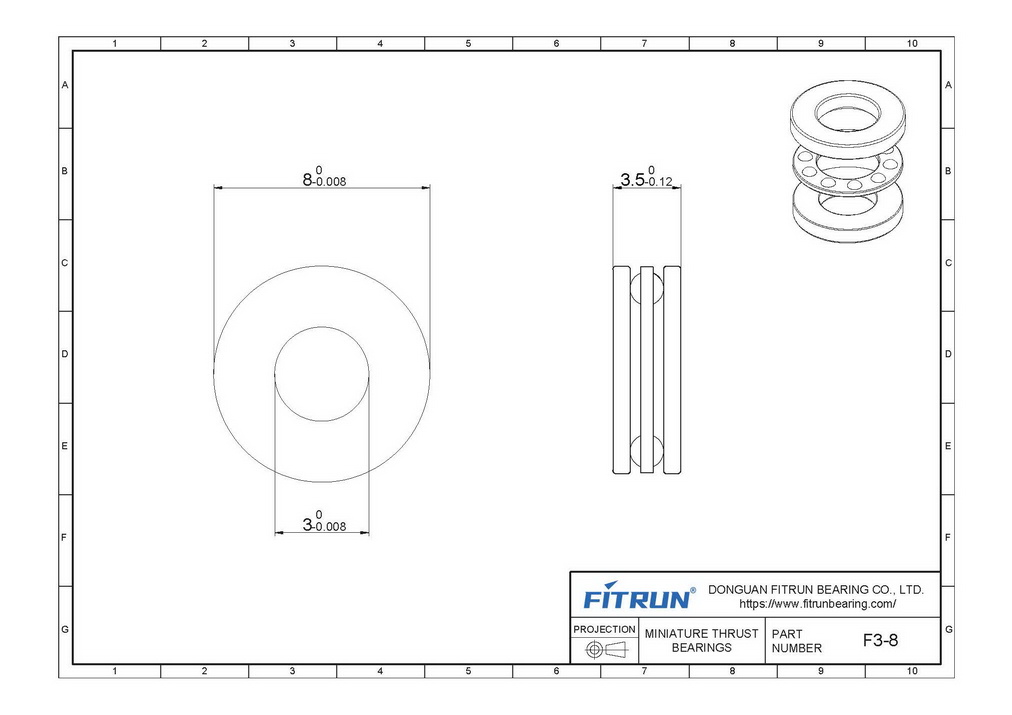

SF3-8 stainless steel thrust bearing drawing
